The Fireface 802 FS is a highly integrated pro audio solution for live and studio use, all within a 19” enclosure.
Packing into a rack size unit, the new Fireface 802 FS is an interface designed for users who don’t want to make compromises in sound, stability and ultra-low latency operation, and who long for an unrivaled professional feature set. Once again a milestone interface from RME, including the best of the best and even a bit more. 60 channels of audio, high-end microphone preamps, reference class converters, a complete effects section and operation at up to 192kHz are the base for many more features.

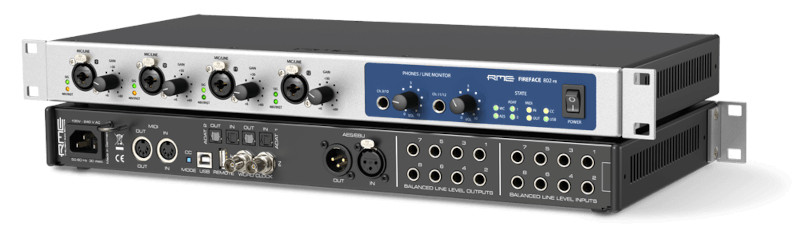

Ultra-low latency operation with RME USB 2 Technology, combined with the legendary RME driver stability and maintenance. SteadyClock FS jitter suppression, individually switchable reference levels for all inputs and outputs, full stand-alone functionality and identical operation on Windows PC and Mac completes the package. The Fireface 802 FS is based on a newly developed analog and digital board. While the analog board offers, for example, DC-coupled analog outputs as well as new AD and DA converters, the digital board also enables interesting new features thanks to updated high-tech components. The front panel of the Fireface 802 FS provides four high-performance XLR/TRS combo inputs for microphone, instrument and line signals and two stereo headphone jacks with +17 dBu output level, to provide high volumes even with hi-impedance headphones. The rear panel reveals the full connectivity of the Fireface 802 FS. Besides MIDI and Word Clock I/O, the two optical ADAT I/Os, an AES/EBU I/O, and eight balanced analog inputs and outputs with line level are available. With the new Multi-Mode, the two ADAT I/Os can be used as separate optical SPDIF inputs and outputs in addition to the AES I/O. Users will also find a USB A port for connecting directly the optional available ARC USB.
The Fireface 802 FS comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DigiCheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians. The additional TotalMix Remote is a remote control for TotalMix FX, to control the hardware mixer and effects in RME audio interfaces. TotalMix Remote mirrors the current state of the host system on the iPad and Windows/Mac computers – the entire mixing state, the complete routing, all FX settings, up to the level meters, and everything in real-time. Easily adjust all the mixer and FX settings from a distance, via Ethernet and WiFi.
